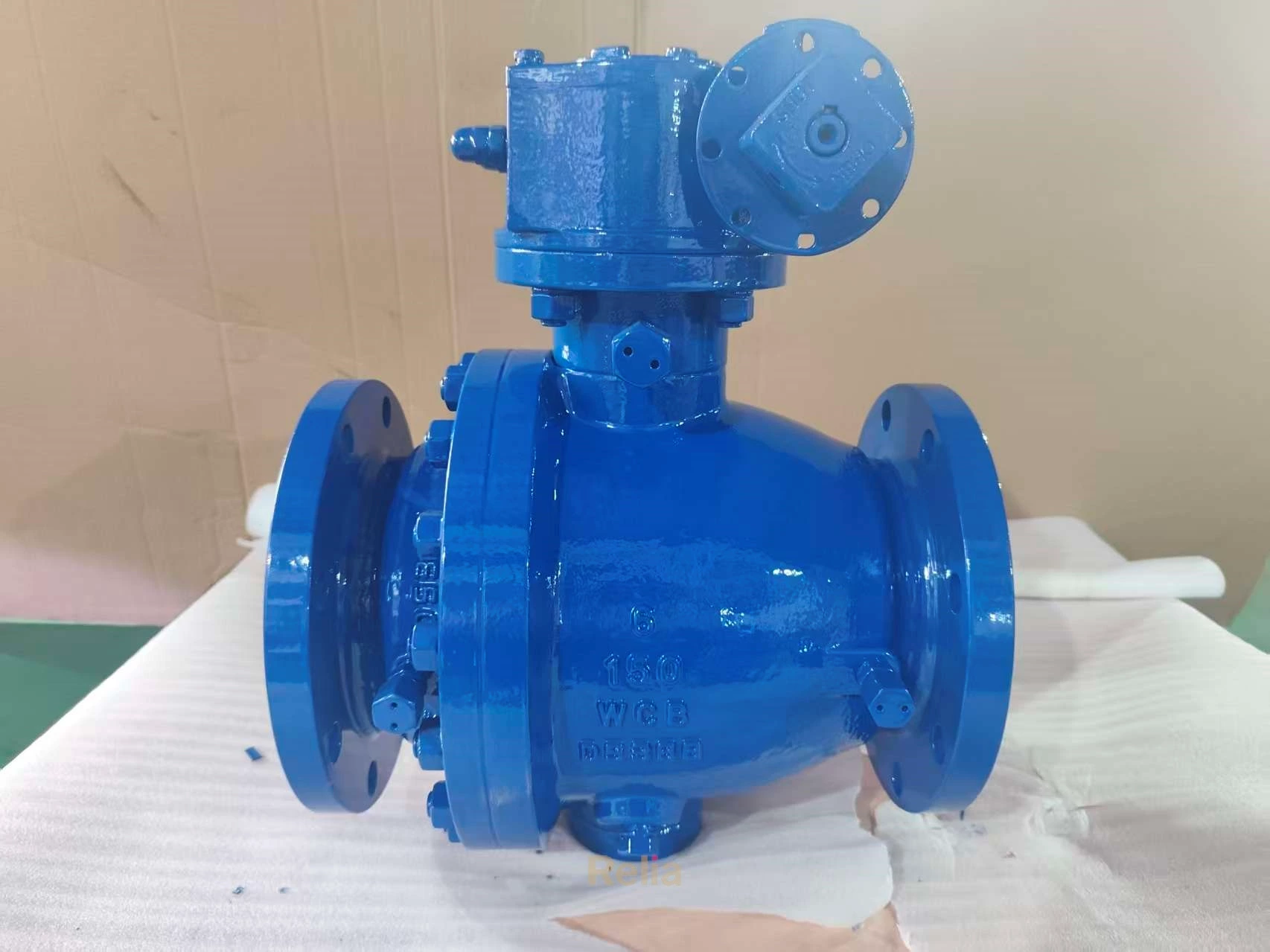

Class 150 Ball Valve Dimensions & Weight
Class 150 ball valve dimensions and weight cover side entry floating ball valves and trunnion-mounted ball valves. The dimensions are as per API 6D.
Floating Ball Valve Dimensions & Weight
Class 150 Floating Ball Valve Dimensions & Weight
| Size | d | L | H | W | Weight |
| Inch | mm | mm | mm | mm | Kg |
| 1/2 | 13 | 108 | 85 | 160 | 2 |
| 3/4 | 19 | 117 | 93 | 160 | 2 |
| 1 | 25 | 127 | 112 | 180 | 4 |
| 1-1/2 | 38 | 165 | 132 | 240 | 6 |
| 2 | 51 | 178 | 138 | 350 | 12 |
| 2-1/2 | 62 | 191 | 155 | 400 | 15 |
| 3 | 76 | 203 | 175 | 400 | 24 |
| 4 | 102 | 229 | 200 | 450 | 36 |
| 5 | 125 | 356 | 246 | 650 | 58 |
| 6 | 152 | 394 | 263 | *300 | 94 |
Trunnion Mounted Ball Valve Dimension & Weight
Class 150 Trunnion Mounted Ball Valve Dimension & Weight
| SIZE | BORE SIZE | END-TO-END (mm) | WEIGHT (KG) | ||||
| (mm) | RF | RTJ | BW | RF/RTJ | BW | ||
| 2” | DN50 | 49 | 178 | 191 | 216 | 18 | 13 |
| 3” | DN80 | 74 | 203 | 216 | 283 | 31 | 24 |
| 4” | DN100 | 100 | 229 | 241 | 305 | 54 | 43 |
| 6” | DN150 | 150 | 394 | 406 | 547 | 226 | 181 |
| 8” | DN200 | 201 | 457 | 470 | 521 | 340 | 294 |
| 10” | DN250 | 252 | 533 | 546 | 559 | 544 | 476 |
| 12” | DN300 | 303 | 610 | 622 | 635 | 771 | 703 |
| 14” | DN350 | 334 | 686 | 699 | 762 | 1065 | 975 |
| 16” | DN400 | 385 | 762 | 775 | 838 | 1383 | 1247 |
| 18” | DN450 | 436 | 864 | 876 | 914 | 1995 | 1791 |
| 20” | DN500 | 487 | 914 | 927 | 991 | 2404 | 2177 |
| 24” | DN600 | 589 | 1067 | 1080 | 1143 | 3946 | 3606 |
| 26” | DN650 | 633 | 1143 | / | 1247 | 4762 | 4286 |
| 28” | DN700 | 684 | 1245 | / | 1346 | 5443 | 4898 |
| 30” | DN800 | 735 | 1295 | / | 1397 | 6803 | 6123 |
| 36” | DN900 | 874 | 1524 | / | 1727 | 11339 | 10205 |
